What's Included:

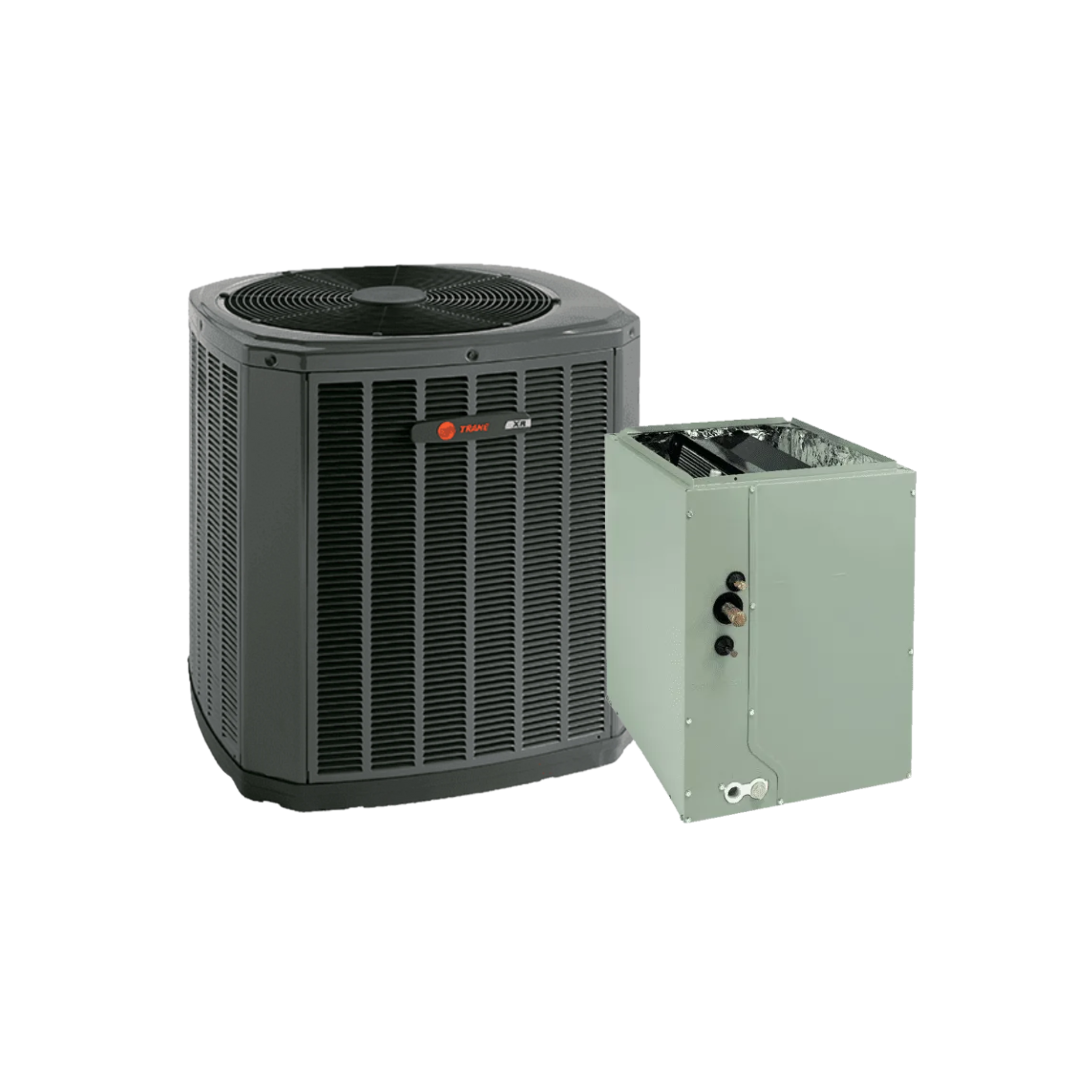

The Trane 5TTR50 offered by Austin HVAC is a high-efficiency air conditioning condenser built for reliable cooling and durability. Featuring Trane s advanced technology, it includes a high-performance scroll compressor and an all-aluminum Spine Fin coil for superior heat transfer and corrosion resistance. The galvanized steel cabinet with a powder-coated finish ensures durability and energy efficiency for residential and light commercial use.
Includes licensed and insured HVAC installation by professionals, along with the Install Kit for a complete setup.
Professional Installation
- Removal & haul-off of existing equipment
- Installation of new equipment and all included parts
- Refrigerant line connection, evacuation & charge to OEM spec
- Full system start-up, airflow check & operational testing
- Permit pulled and permit fees paid with the local jurisdiction
- Final inspection and job-site clean-up
- Performed by a licensed, insured HVAC contractor
Condenser & Coil Kit
-
Electrical & mounting disconnect, A/C whip, condenser pad
-
Refrigerant line filter drier, locking caps, ArmaFlex insulation
Not Included
This listing covers the equipment and standard installation scope above. The following items are not included unless specifically listed on your written invoice or estimate:
-
Electrical panel upgrades or new breakers beyond the regular disconnect
-
Ductwork modifications, repairs, replacement, or new runs
-
New refrigerant line set (existing line set is reused when in good condition)
-
Condenser pad re-pour, raised platform, or hurricane tie-downs (standard composite pad is included)
-
Condenser relocation to a new exterior position
-
Crane or rooftop rigging for difficult equipment access
-
Gas line extension, re-routing, or new gas line installation
-
Condensate drain line rework beyond the immediate connection at the unit
-
Thermostat upgrades (standard thermostat reuse only)
-
Asbestos abatement, mold remediation, or hazardous material handling
-
Carpentry, drywall, paint, or flooring repair after installation
If any of the above are needed for your home, our technician will examine on-site and provide a written change-order quote before any additional work begins. Nothing extra is charged or performed without your written approval.
5-Year Labor Warranty
Labor is covered for 5 years from the date of installation. If a covered defect related to our installation causes a failure, we return at no charge for diagnosis and labor. Parts replacements are handled under the OEM parts warranty (10 years when registered). Excludes maintenance, filter changes, customer-caused damage, and acts of nature. Full terms on the Warranty & Guarantee page.
Paired with the Trane 5TXC evaporator coil, this system improves cooling and humidity control. The 5TXC coil is an all-aluminum design that maximizes heat exchange and resists corrosion better than traditional copper/aluminum coils. Its factory-installed thermal expansion valve (TXV) ensures precise refrigerant control for optimal efficiency and consistent comfort.
Together, the 5TTR50 condenser and 5TXC coil deliver electricity-efficient cooling and long-term reliability for a comfortable house environment.
|
Condenser Model
|
5TTR5024
|
|
Cooling Capacity
|
2 Ton
|
|
Cooling Efficiency (SEER2)
|
15.2
|
|
Coil Model
|
5TXCB003
|
|
Type
|
Cased
|
|
Cabinet Size
|
B
|
|
Refrigerant
|
R-454B
|
|
Warranty
|
10 Year Parts, 10 Year Compressor
(When Registered with OEM)
|
